The TBM750-53KTIF is positioned for teams that are already past early awareness and are now comparing suppliers, validating electrical fit, and preparing an RFQ for a real project. In that stage, the decision is rarely about one headline spec. It is about whether the module fits the grid, the DC bus, the cabinet, the controls architecture, the compliance path, and the project delivery model.
For system integrators, panel builders, procurement teams, and electrical engineers, this article focuses on the questions that actually decide shortlists: whether the module is right for a 750VDC platform, how it behaves in three-phase applications, what installation constraints matter, and how TPS can support not only the module itself but also the surrounding engineering package.
The TBM750-53KTIF is a three-phase high-voltage bidirectional power module designed for seamless AC/DC energy conversion around a 750VDC bus. In practical terms, that means one module can support controlled power flow between a three-phase AC side and a high-voltage DC side, which is exactly the kind of architecture that appears in production equipment, grid-connected energy platforms, and engineered cabinet systems that need more than a conventional one-way power supply.
For late-stage buyers, the value is not only the 53kW power class. It is the combination of three-phase operation without a neutral line, bidirectional isolation and energy flow, high power factor, low THDi, communication capability, and modular expansion logic. These are the details that reduce integration risk and shorten the path from technical review to approved purchase.
If your team is still weighing general topology choices, TPS already covers the broader decision framework in its guide to bidirectional power supply selection for US compliance-oriented projects. If your architecture is already moving toward a cabinetized bidirectional platform, the more relevant question becomes whether the TBM750-53KTIF is the right fit for your exact electrical and integration envelope.
System integrators should look first at bus voltage fit, energy-flow logic, control interface expectations, and multi-module scaling. If the application requires a 750VDC-class bus and predictable interaction with upstream and downstream equipment, this module deserves a serious review.
Panel builders and electrical engineers should focus on cabinet compatibility, thermal path, terminal access, cable routing, protection coordination, and field serviceability. The module format and airflow direction matter just as much as headline electrical performance.
Procurement teams should ask whether the vendor can support documentation, compliance discussions, and adjacent scope such as sheet metal, harnesses, and production packaging. That is where TPS can move beyond being a parts vendor and act as a solution partner for US and DE B2B programs.

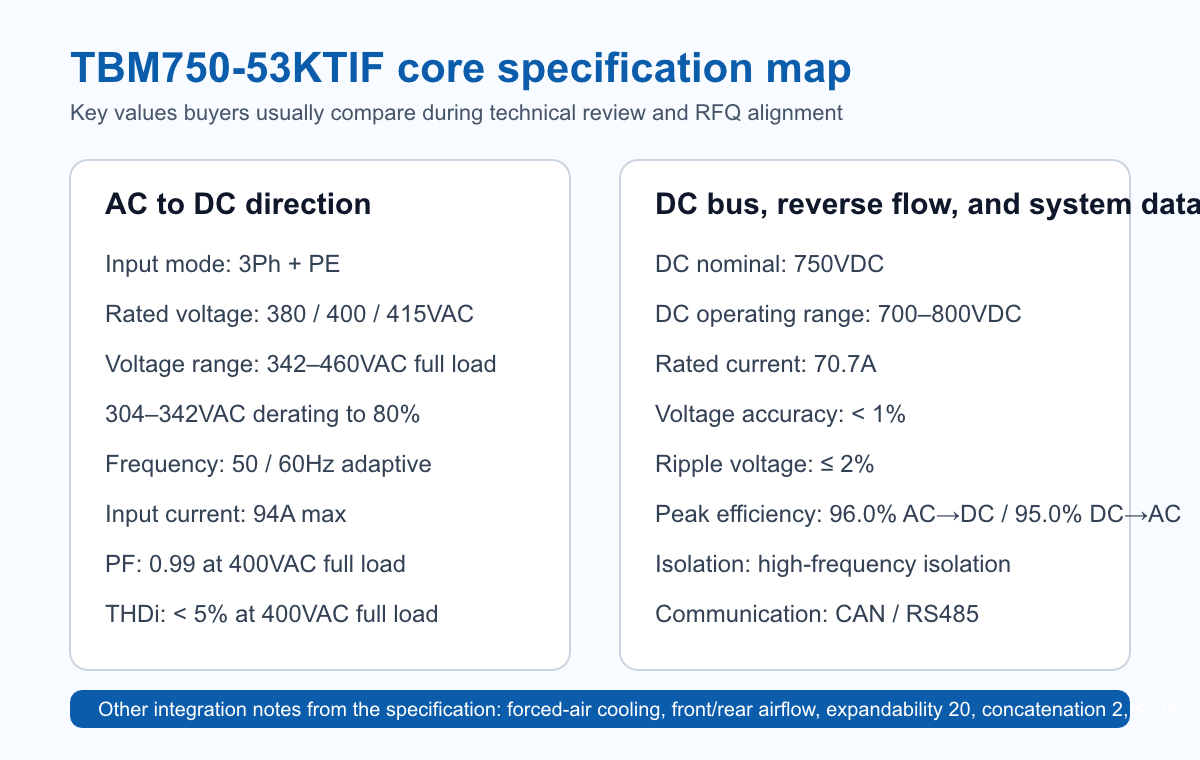

At BoFu stage, buyers do not need another vague “high efficiency, high reliability” paragraph. They need the numbers that decide whether engineering review continues or stops. For the TBM750-53KTIF, the first filter is electrical architecture. The module is specified for 380/400/415VAC three-phase input with 3Ph + PE, and supports a 700–800VDC operating window around a 750VDC nominal bus. That immediately makes it more relevant to high-voltage DC platforms than to lower-voltage cabinet designs.
The second filter is power quality and conversion performance. The specified power factor is 0.99 at 400VAC and full load, while THDi is listed below 5% at the same condition. Peak efficiency is listed at 96.0% in the AC-to-DC direction and 95.0% in the DC-to-AC direction, which is meaningful for applications where energy flow is frequent rather than occasional.
Rated current on the DC side is 70.7A. Voltage accuracy is listed below 1%, and ripple voltage at 2% or less. For buyers comparing modules in the same class, that combination helps frame real project fit quickly.
| Power class | 53kW rated output capacity |
|---|---|
| AC side | 380/400/415VAC, 3Ph + PE, 342–460VAC full load, 304–342VAC derating to 80% |
| DC side | 750VDC nominal, 700–800VDC operating range, 70.7A rated current |
| Power quality | PF 0.99, THDi < 5% at 400VAC full load |
| Peak efficiency | 96.0% AC→DC and 95.0% DC→AC |
| Control and status | CAN / RS485 communication, operation/alarm/fault indicators |
| Mechanical | 435 × 86 × 600mm without handle; 489 × 86 × 647.5mm with handle; ≤23kg |
Another important buying signal is that this module is built for cabinet use. The specification points to forced-air cooling with front fan side and rear terminal-side airflow, which means enclosure design cannot be treated as an afterthought. Teams working on larger system packaging should review this together with TPS resources on industrial control cabinets for automation and custom sheet metal enclosures and cabinets for power electronics.
The specification also points to expandability of 20 and concatenation of 2, which suggests the platform was designed with modular system growth in mind. Buyers should confirm exact scaling logic during the RFQ stage.

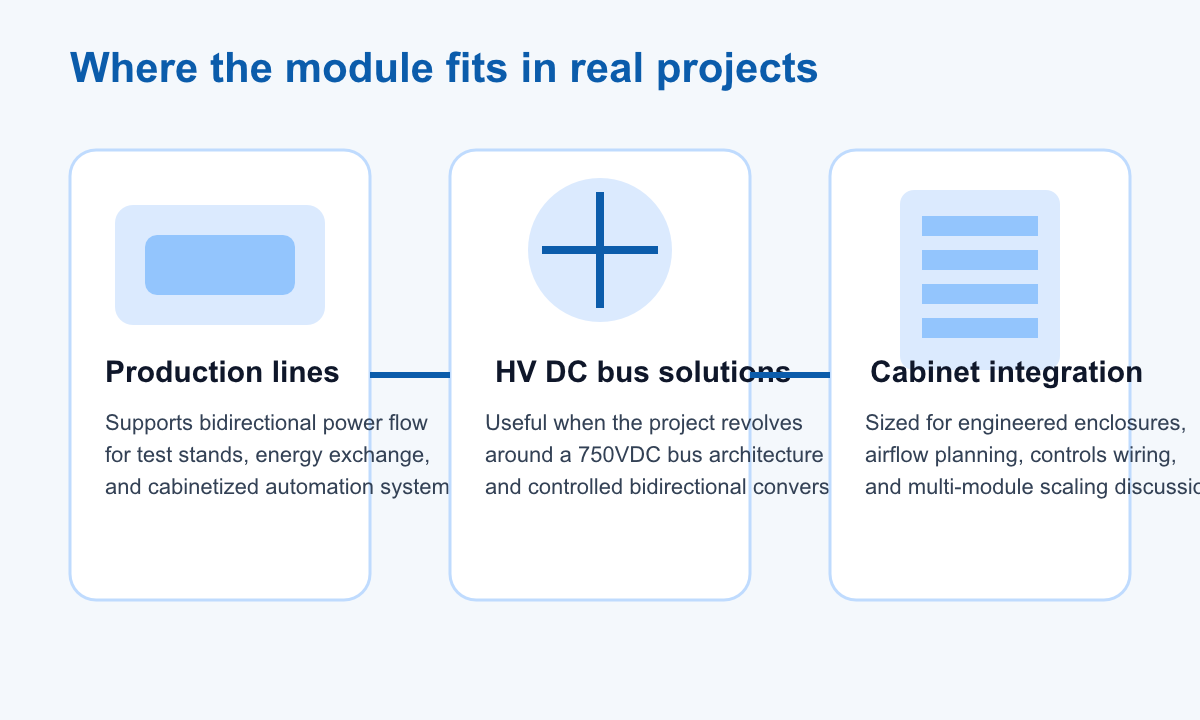

The specification lists production line applications, high-voltage DC busbar solutions, and matching cabinet systems as key use cases. Those are broad labels, so the real question is how to translate them into project language.
In production-line environments, bidirectional conversion matters when the system is not simply consuming power in one direction. Energy may need to move between process equipment, DC bus structures, storage elements, or controlled regenerative functions. In these scenarios, the TBM750-53KTIF is relevant when the architecture already uses a high-voltage DC backbone and the team needs a cabinet-ready conversion module.
For panel builders or automation teams that also need packaging support, TPS can align the power module with custom cable assemblies and wire harness support, mixed-technology PCB assembly, and broader power-electronics manufacturing services.
If your project is centered on a 750VDC bus, this module becomes easier to justify because the nominal voltage aligns directly with the system target. That is important for teams that do not want to introduce unnecessary conversion stages or custom rework. Instead of forcing a near-fit part into the design, you can evaluate a module that already sits in the intended operating window.
This is also where TPS can support equivalency and project-level matching. The priority should be to define the required voltage range, power quality targets, control expectations, and enclosure constraints, then validate whether TPS can provide the same class of solution with stronger project support.
The module dimensions, airflow direction, handle format, terminals, DIP switch, indicator light, and dry-contact-oriented interface layout all point toward engineered cabinet integration rather than casual deployment. Buyers building complete systems should look at the TBM750-53KTIF together with enclosure design, harness routing, thermal planning, and component accessibility. For projects that may later require more advanced thermal management, TPS also shares context on liquid cold plate design for power electronics.

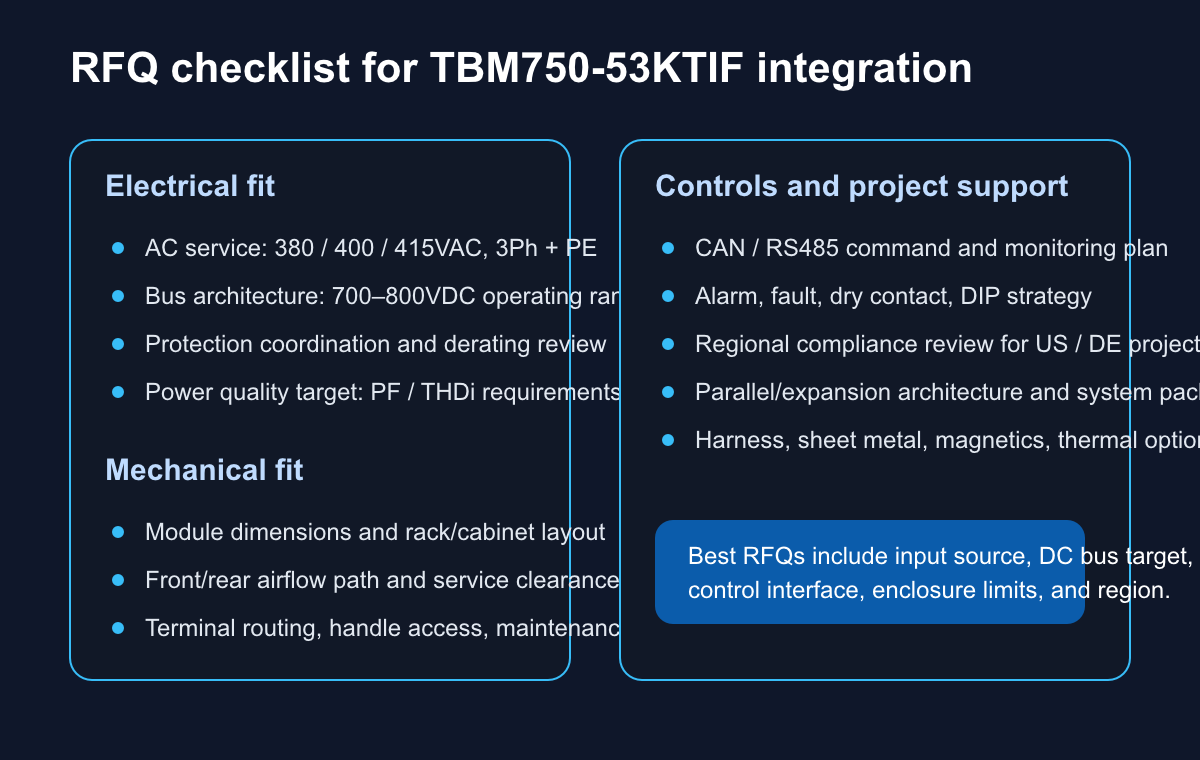

Most high-power module delays happen after the part is selected, not before. That is why a BoFu article should talk openly about integration friction. With the TBM750-53KTIF, the checklist starts with electrical fit, but it should end with installation discipline and service planning.
Start with the obvious questions. Is the available AC service truly within the specified range? Is the intended DC bus inside the 700–800VDC operating window? Does the facility need full-load performance across the normal voltage range, or will it spend meaningful time in the derating band?
Protection coordination is another essential checkpoint. Project teams should define upstream protection, contactor strategy, fault response logic, and safe maintenance procedures in the RFQ package.
The module uses forced-air cooling with front-to-rear airflow logic, and the dimensions are substantial enough that clearance planning matters. Buyers should confirm rack space, service space, terminal accessibility, fastening method, mounting-hole constraints, and airflow path before approving the BOM.
Operation is listed at full load from -10°C to 45°C, with derating to 80% between 45°C and 60°C. Storage is listed from -40°C to 70°C, relative humidity from 5% to 95% non-condensing, and full load below 2000m altitude, with power reduction above that point.
On the controls side, CAN and RS485 give the module a practical path into higher-level monitoring and command structures. During the RFQ stage, buyers should define who owns the communication map, alarm and fault logic, DIP switch settings, and commissioning sequence. If the surrounding power stack also needs support, TPS can align adjacent elements such as custom magnetics and other high-power platform needs.
For supplier screening, the right question is not “Does the module look good on paper?” It is “Can this supplier support the module through technical review, documentation clarification, cabinet integration, and production readiness?” The TBM750-53KTIF specification indicates design alignment with IEC62477-1 and EN55032 and references UL, CE, and TUV certification pathways. That provides a useful starting point for compliance conversations, but teams should still request project-specific confirmation during RFQ.
Reliability should also be viewed in context. The module is described around mature soft-switching technology, strong grid and environmental adaptability, automatic parallel operation, and fault protection. These are stronger buying signals when they are paired with practical project support from the supplier.
No. It is positioned as a bidirectional power module for controlled energy flow between a three-phase AC side and a high-voltage DC side, not as a simple one-way converter.
Confirm that your project really centers on a 750VDC-class bus and that the available AC service aligns with the specified three-phase 380/400/415VAC operating envelope.
Yes. The broader TPS content library shows capability around cabinets, harnesses, magnetics, power-electronics manufacturing, and project integration support. That is valuable for OEM and industrial customers that want fewer handoff points between module selection and system delivery.
Treat it as a serious design and certification discussion point, not as a shortcut assumption. Ask TPS to confirm the exact compliance pathway, documentation package, and regional certification status needed for your target market and end equipment.
As soon as the project has a defined power class, bus voltage target, region, and enclosure concept. Early procurement engagement helps shorten the clarification loop on pricing, delivery planning, technical documents, and solution scope. The quickest route is to start from the TBM750-53KTIF page and attach the core RFQ details.
