For bigger 24V control architectures, the selection question is not only “Can one DIN-rail supply deliver enough power?” It is “Where does it fit best, and what design choices turn that fit into a cleaner RFQ, easier commissioning, and fewer service headaches?” This guide shows where AIF480-B24 fits best for US system integrators, panel builders, procurement teams, and electrical engineers.
The short list is why this unit deserves attention: 480W total output, 24V nominal at 20A, 24–28V adjustment, 85–264VAC or 120–370VDC input, 94.5% typical efficiency at 230VAC, active PFC, DC OK, 3000VAC input-to-output isolation test, -40°C to +70°C, and a 48mm DIN-rail profile.
Those numbers matter because they answer three B2B questions at once: can the unit supply the load, fit the cabinet, and make the 24V architecture easier to document and support. That is exactly why AIF480-B24 is worth evaluating for larger 24V systems.
| Selection Point | What AIF480-B24 Offers | Why It Matters |
|---|---|---|
| Output class | 24V / 20A / 480W | Supports larger PLC panels, valve banks, Ethernet hardware, and grouped 24V loads from one rail supply. |
| Cabinet footprint | 48mm slim DIN-rail format | Useful when every extra module width increases enclosure size, duct crowding, or build time. |
| Input flexibility | 85–264VAC or 120–370VDC | Helps standardize one design across more than one facility or machine platform. |
| Thermal behavior | 94.5% typical efficiency, free-air convection | Lower heat burden than many alternatives, but still requires real spacing and thermal review. |
| Controls integration | DC OK signal + LED indication | Supports alarm mapping, maintenance visibility, and faster service calls. |
| Protection set | Short-circuit, over-current, over-voltage, over-temperature, and input under-voltage protection | Improves survivability and makes fault behavior easier to manage. |
The value of AIF480-B24 is not just that it is “480W.” The real value is the combination of high-current 24V output, industrial input flexibility, DC OK status, and a space-efficient DIN-rail profile. For US B2B buyers, that combination usually creates one of three outcomes: fewer devices on the rail, cleaner 24V distribution, or easier fault visibility during startup and service.
That is why the unit is attractive when a project has outgrown small PLC-panel power supplies but does not need a custom backplane or chassis supply system. Instead of stacking two or three smaller units, teams can evaluate one main 24V source and then engineer downstream branches correctly.
If the project also needs cabinet robustness or pre-compliance planning, TPS resources on industrial automation EMC and safety testing and DIN-rail 24V DC distribution are natural next reads.

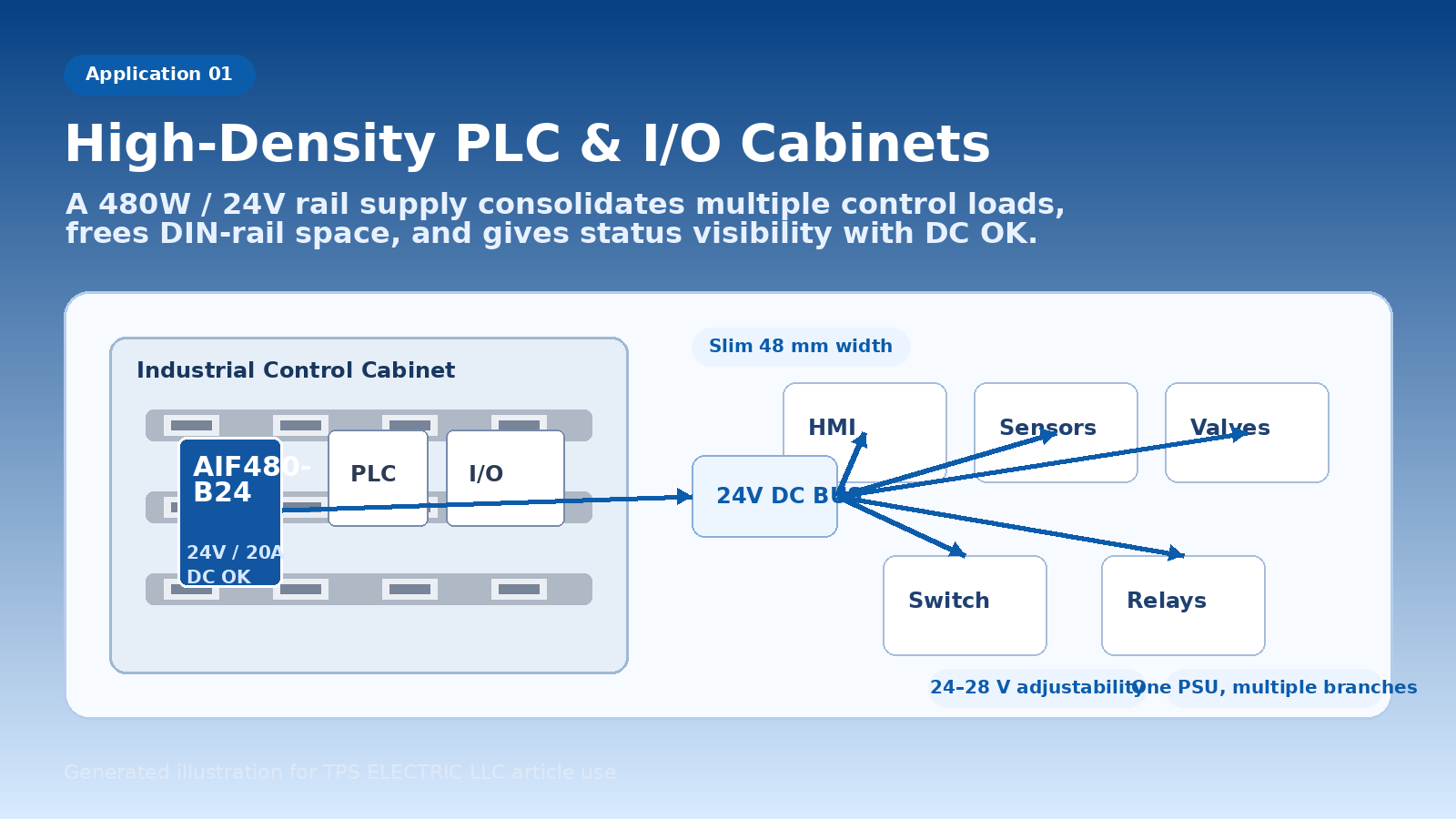

This is the cleanest fit. Many industrial panels start with one PLC and a few I/O modules, then slowly accumulate HMIs, switches, relay groups, safety devices, and accessory loads. The result is often a crowded rail with multiple smaller power supplies and no clean “main 24V source” story for procurement, build, or service.
AIF480-B24 makes sense where the 24V load is substantial but still centralized enough to benefit from one documented source. Typical examples are larger PLC racks, remote I/O panels, process skids, and control cabinets with several communication and relay loads. The adjustable 24–28V window also gives some room for voltage-drop tuning, provided the downstream equipment is reviewed carefully.
For procurement, that can simplify the BOM. For panel builders, it improves layout clarity. For controls engineers, the DC OK function is the practical win: power-health status can be mapped into logic or alarms instead of being discovered late with a meter.
The next strong fit is machine-level control power. Packaging systems, assembly cells, auxiliary skids, and inspection machines often need one 24V source that can support logic, comms, actuators, and signaling while keeping enclosure width under control.
In that situation, the design question is not just wattage. It is whether the 24V source stays stable and serviceable when real machine behavior shows up: inrush, intermittent solenoids, noisy cable routing, and enclosure heat. The slim DIN footprint, broad input range, and DC OK signaling make AIF480-B24 attractive for this job, especially when the machine platform may be reused across different sites.
Good application practice still matters. Separate noisy and sensitive branches. Do not assume the supply replaces downstream branch protection. And if enclosure conditions are aggressive, confirm spacing and derating instead of relying on room-temperature assumptions. For enclosure planning, the TPS guide on NEMA vs. IP vs. UL 50E selection is a useful complement.

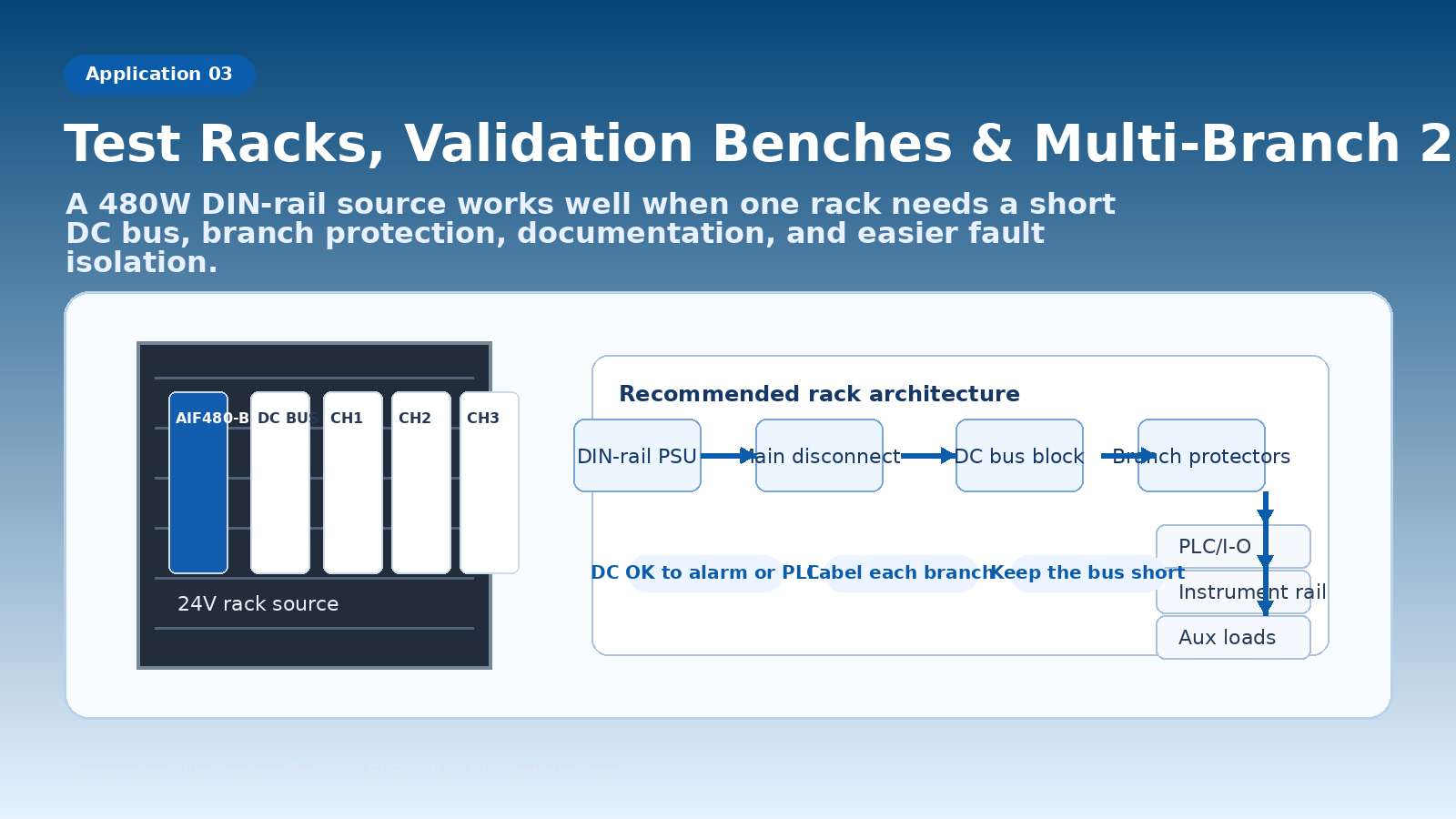

AIF480-B24 is also a strong candidate for engineered test racks and validation benches where one main 24V rail must feed several protected branches. Here, the service model is different from a machine panel: loads change, prototype hardware appears unexpectedly, and documentation quality directly affects uptime.
In this environment, the power supply should usually be treated as the source layer, not the whole protection strategy. A sound pattern is: main DIN-rail PSU, optional disconnect, short DC bus, branch-by-branch protection, then clearly labeled load terminals. That is why the TPS article on 24V DC distribution for test racks pairs naturally with AIF480-B24.
The DC OK function becomes especially useful in shared lab environments because it separates “the main rail is down” from “one branch tripped” or “the DUT is misbehaving.” If the broader project includes battery or energy-storage validation, TPS ELECTRIC LLC also offers adjacent reading on battery test system power safety architecture.

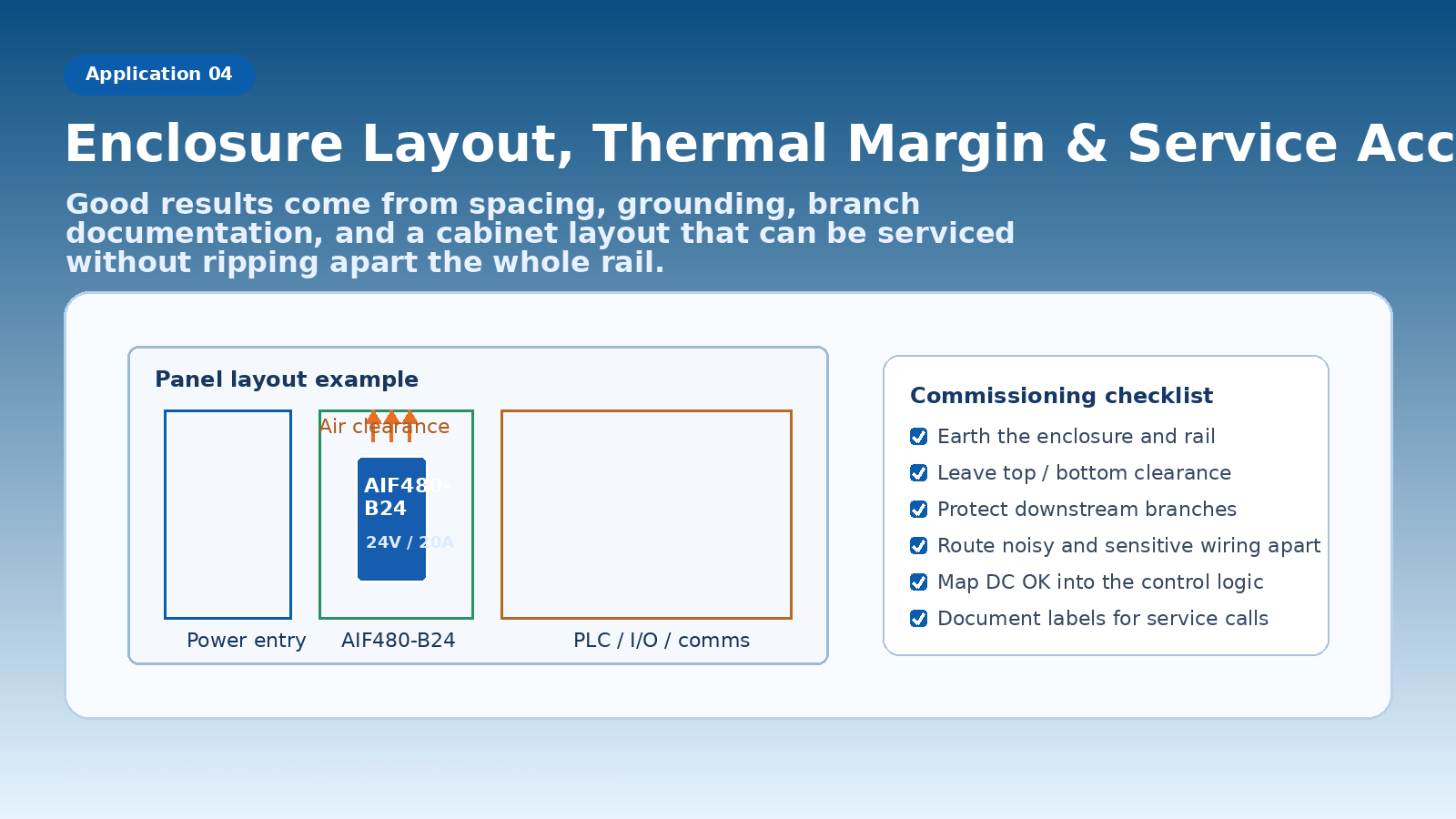

A good power supply can still perform badly in a poor cabinet layout. That is why the last industrial application topic is really a deployment discipline: spacing, airflow, grounding, branch labeling, and service access.
Because AIF480-B24 uses free-air convection, the enclosure should be checked in the real mechanical package, not just on a drawing. If neighboring modules are hot, increase spacing and validate temperature rise under actual load. For rack-style systems, the TPS guide to test rack enclosure design, wiring, documentation, and service access is a practical next step.
External reference thinking also matters. For neutral standards context, use the official IEC EMC overview, IEC basic EMC publications, and UL’s official page on IEC 61010 testing and certification.
AIF480-B24 is not the right answer for every 24V system. If your application needs native redundancy, medical end-equipment compliance, branch-level programmability, or unusual environmental hardening, the better move may be a different standard product or a broader integration solution.
Good BoFu content should qualify, not over-sell. But when your project fits the mainstream industrial pattern described here, AIF480-B24 is a strong candidate because it balances power density, footprint discipline, and field-service visibility.
Send TPS ELECTRIC LLC your load list, cabinet constraints, input conditions, and any branch-protection or compliance concerns. That makes it easier to confirm whether AIF480-B24 is the right standard fit or whether your project needs a broader integration discussion.
Often, yes. If several smaller supplies are used mainly to reach total current, one 24V / 20A source may simplify layout and service. The design still needs branch protection and thermal review.
It is usually strongest as a centralized 24V source in cabinets, skids, or racks where a documented branch architecture makes sense.
Check the real load profile, branch protection plan, enclosure spacing, thermal rise, grounding method, and how the DC OK signal will be used.
Yes, when used intentionally. It can help with voltage-drop tuning, but every downstream device still needs voltage-tolerance review.
System integrators, panel builders, procurement teams, and electrical engineers qualifying a larger 24V DIN-rail architecture should start with the AIF480-B24 product page.
