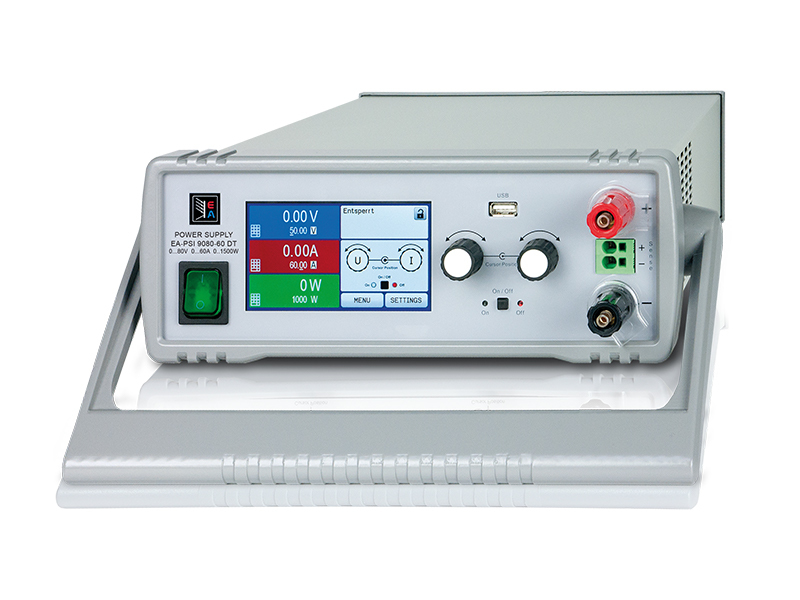

Flexible EA-PSI 9000 DT series programmable DC power supplies with wide 40–750V output, 4–60A current, and 320–1500W power ratings in a compact benchtop enclosure with carrying handle. Featuring active PFC, up to 92% efficiency, a 4.3″ TFT touch panel, built-in arbitrary function generator, internal resistance simulation, and isolated USB/Ethernet/Analog interfaces, they are expertly suited for laboratory R&D, industrial automation, component testing, and any application demanding precise, low-ripple DC output.

Model

PSI 9040-8 DT, PSI 9040-20 DT, PSI 9080-4 DT, PSI 9080-18 DT, PSI 9200-5 DT, PSI 9200-7.5 DT, PSI 9360-2 DT, PSI 9360-4 DT, PSI 9500-1.6 DT, PSI 9500-3 DT, PSI 9750-1.2 DT, PSI 9750-2 DT

Output Power (Max)

320W, 720W, 800W, 900W, 1000W, 1440W, 1500W

Output Voltage (CV Range)

0-40V, 0-80V, 0-200V, 0-360V, 0-500V, 0-750V

Output Current (CC Range)

0-1.2A, 0-1.6A, 0-2A, 0-3A, 0-4A, 0-5A, 0-7.5A, 0-8A, 0-18A, 0-20A

AC Input (Active PFC)

90-264V AC

Type

Programmable DC Power Supply

External Control

Analog, USB, Ethernet

Housing

Benchtop (19" Rack Mount Kit Optional)

Special Features

Function Generator, Int. Resistance Simulation, SCPI, Arbitrary Generator

GET A QUOTE

Add to Quote List View Quote List

Description

Model Overview – Typical Configurations

Model	Output Power (Max)	Output Voltage (CV Range)	Output Current (CC Range)	AC Input (Active PFC)	Type	External Control	Housing	Special Features
PSI 9040-8 DT	320W	0-40V	0-8A	90-264V AC	Programmable DC Power Supply	Analog, USB, Ethernet	Benchtop (19" Rack Mount Kit Optional)	Function Generator, Int. Resistance Simulation, SCPI, Arbitrary Generator
PSI 9040-20 DT	800W	0-40V	0-20A	90-264V AC	Programmable DC Power Supply	Analog, USB, Ethernet	Benchtop (19" Rack Mount Kit Optional)	Function Generator, Int. Resistance Simulation, SCPI, Arbitrary Generator
PSI 9080-4 DT	320W	0-80V	0-4A	90-264V AC	Programmable DC Power Supply	Analog, USB, Ethernet	Benchtop (19" Rack Mount Kit Optional)	Function Generator, Int. Resistance Simulation, SCPI, Arbitrary Generator
PSI 9080-18 DT	1440W	0-80V	0-18A	90-264V AC	Programmable DC Power Supply	Analog, USB, Ethernet	Benchtop (19" Rack Mount Kit Optional)	Function Generator, Int. Resistance Simulation, SCPI, Arbitrary Generator
PSI 9200-5 DT	1000W	0-200V	0-5A	90-264V AC	Programmable DC Power Supply	Analog, USB, Ethernet	Benchtop (19" Rack Mount Kit Optional)	Function Generator, Int. Resistance Simulation, SCPI, Arbitrary Generator
PSI 9200-7.5 DT	1500W	0-200V	0-7.5A	90-264V AC	Programmable DC Power Supply	Analog, USB, Ethernet	Benchtop (19" Rack Mount Kit Optional)	Function Generator, Int. Resistance Simulation, SCPI, Arbitrary Generator
PSI 9360-2 DT	720W	0-360V	0-2A	90-264V AC	Programmable DC Power Supply	Analog, USB, Ethernet	Benchtop (19" Rack Mount Kit Optional)	Function Generator, Int. Resistance Simulation, SCPI, Arbitrary Generator
PSI 9360-4 DT	1440W	0-360V	0-4A	90-264V AC	Programmable DC Power Supply	Analog, USB, Ethernet	Benchtop (19" Rack Mount Kit Optional)	Function Generator, Int. Resistance Simulation, SCPI, Arbitrary Generator
PSI 9500-1.6 DT	800W	0-500V	0-1.6A	90-264V AC	Programmable DC Power Supply	Analog, USB, Ethernet	Benchtop (19" Rack Mount Kit Optional)	Function Generator, Int. Resistance Simulation, SCPI, Arbitrary Generator
PSI 9500-3 DT	1500W	0-500V	0-3A	90-264V AC	Programmable DC Power Supply	Analog, USB, Ethernet	Benchtop (19" Rack Mount Kit Optional)	Function Generator, Int. Resistance Simulation, SCPI, Arbitrary Generator
PSI 9750-1.2 DT	900W	0-750V	0-1.2A	90-264V AC	Programmable DC Power Supply	Analog, USB, Ethernet	Benchtop (19" Rack Mount Kit Optional)	Function Generator, Int. Resistance Simulation, SCPI, Arbitrary Generator
PSI 9750-2 DT	1500W	0-750V	0-2A	90-264V AC	Programmable DC Power Supply	Analog, USB, Ethernet	Benchtop (19" Rack Mount Kit Optional)	Function Generator, Int. Resistance Simulation, SCPI, Arbitrary Generator

30-Second Fit Check

Need a silent, high-precision DC source on your bench? Models cover 0-40V to 0-750V, with currents up to 60A.
Output power: 320W to 1500W across the series; up to 92% efficiency with active PFC.
Constant voltage (CV), constant current (CC), constant power (CP), plus internal resistance simulation.
Colour 4.3" TFT touch panel with two rotary knobs; preset set values without energising the output.
Comprehensive protection: OVP, OCP, OPP, OT; 40V models are SELV compliant.

What It Is + Why It Matters

Microprocessor-controlled bench DC power supplies for R&D, industrial automation, and laboratory testing.
Integrated function generator (sine, square, ramp, arbitrary etc.) plus an editable 99-sequence arbitrary generator for complex test routines.
Internal resistance simulation enables realistic source behaviour; low residual ripple and a fast discharge circuit (Uout < 60V in ≤10s) add operational safety.
Multiple galvanically isolated interfaces – analog (0-5/10V), USB, Ethernet (SCPI & ModBus RTU) – ensure easy system integration.

Note: Remote sensing is available to compensate voltage drop. Use twisted sense wires and observe polarity. Ensure adequate ventilation (min. 30 cm rear clearance).

Key Specs

AC input: 90-264V AC, 45-65Hz with active PFC; efficiency up to 92%.
Output voltage: 0-40V up to 0-750V (model dependent); Current: 0-4A up to 0-60A; Power: 320W up to 1500W.
Display: 4.3" TFT touchscreen, 480pt x 272pt; set values adjustable via knobs or direct numeric input.
Interfaces: USB-B (rear), USB-A (front), Ethernet, 15-pin isolated analog (0-5V/0-10V selectable).
Protection: OVP, OCP, OPP, OT; supervision with configurable signal/warning/alarm actions.
Dimensions (WxHxD): approx. 276 x 103 x 355mm; Weight: 6.5-7.5 kg (depending on model).

Integration & Installation

Output terminals on front panel: safety sockets and screw terminals; remote sensing connector (Sense) on front.
AC mains via IEC socket (cord included); optional 19" rack mount kit (2U).
USB-A port for profile/sequence storage on FAT32 USB stick; multi-language touch panel (German, English, Russian, Chinese).
Output can be enabled/disabled via front button, analog REM-SB pin, or digital command.

Best for / Not for

Best for: Laboratory experiments, automated test systems, industrial 24V/48V DC supply, electroplating, battery charging (with proper settings), and semiconductor testing.
Not for: Applications requiring AC output, direct parallel operation for current sharing without external controls, or environments without adequate ventilation.

Selection Checklist + RFQ

Choose voltage/current model within 40V-750V / 4A-60A to match your load requirement.
Verify total continuous power demand ≤ rated model power, considering any derating at high ambient temperatures.
Select interface settings: analog range (0-5V/0-10V), Ethernet IP mode, and required remote control protocol (SCPI/ModBus).
Plan for 30 cm rear clearance and, if rack mounting, ensure support rails are installed.
