Programmable desktop DC power supply with 90-264V AC input, active PFC, 0-40/80/200V output, up to 40A and 160-640W power range, compact 200 x 87 x 301/331mm design, USB, Ethernet and analog control interfaces, LCD display, preset memory and OVP/OCP/OPP/OTP protection for laboratory testing, R&D validation, electronics troubleshooting and automated DC power applications.

Model

PSI 5040-10 A, PSI 5080-05 A, PSI 5200-02 A, PSI 5040-20 A, PSI 5080-10 A, PSI 5200-04 A, PSI 5040-40 A, PSI 5080-20 A, PSI 5200-10 A

Type

Programmable Desktop DC Power Supply

Output Power Max

160W, 320W, 640W

Output Voltage CV Range

0-40V, 0-80V, 0-200V

Output Current CC Range

0-2A, 0-4A, 0-5A, 0-10A, 0-20A, 0-40A

AC Input Active PFC

90-264V AC

Frequency

45-65Hz

Power Factor

>0.95, >0.97, >0.99 depending on model

Efficiency

Up to 92%

Housing

Desktop chassis with closed top and bottom

GET A QUOTE

Add to Quote List View Quote List

Description

Programmable Desktop DC Power Supply Overview

The EA-PSI 5000 A Series is a compact programmable desktop DC power supply designed for laboratory testing, R&D validation, electronics troubleshooting, production test benches and remotely controlled DC power applications. The series provides 160W, 320W and 640W output classes, model-dependent voltage ranges of 0-40V, 0-80V and 0-200V, and output current options from 0-2A up to 0-40A.

With 90-264V AC wide input, active PFC, up to 92% efficiency, flexible power-regulated output, blue LCD display, memory for 9 presets, USB, Ethernet and galvanically isolated analog control, this programmable DC power supply is suitable for both manual bench operation and integration into automated test systems.

Model Overview – Typical Configurations

Model	Output Power (Max)	Output Voltage (CV Range)	Output Current (CC Range)	AC Input (Active PFC)	Power Factor	External Control	Dimensions (W x H x D)	Special Features
PSI 5040-10 A	160W	0-40V	0-10A	90-264V AC	>0.95	Analog, USB, Ethernet	200 x 87 x 301mm	LCD display, 9 presets, OVP/OCP/OPP, SCPI, SELV 40V model
PSI 5080-05 A	160W	0-80V	0-5A	90-264V AC	>0.95	Analog, USB, Ethernet	200 x 87 x 301mm	LCD display, 9 presets, OVP/OCP/OPP, SCPI, convection cooling
PSI 5200-02 A	160W	0-200V	0-2A	90-264V AC	>0.95	Analog, USB, Ethernet	200 x 87 x 301mm	LCD display, 9 presets, OVP/OCP/OPP, SCPI, convection cooling
PSI 5040-20 A	320W	0-40V	0-20A	90-264V AC	>0.97	Analog, USB, Ethernet	200 x 87 x 301mm	Temperature-controlled fan, LCD display, 9 presets, SELV 40V model
PSI 5080-10 A	320W	0-80V	0-10A	90-264V AC	>0.97	Analog, USB, Ethernet	200 x 87 x 301mm	Temperature-controlled fan, OVP/OCP/OPP/OTP, SCPI support
PSI 5200-04 A	320W	0-200V	0-4A	90-264V AC	>0.97	Analog, USB, Ethernet	200 x 87 x 301mm	Temperature-controlled fan, OVP/OCP/OPP/OTP, rear screw terminal
PSI 5040-40 A	640W	0-40V	0-40A	90-264V AC	>0.99	Analog, USB, Ethernet	200 x 87 x 331mm	High-current model, temperature-controlled fan, SELV 40V model
PSI 5080-20 A	640W	0-80V	0-20A	90-264V AC	>0.99	Analog, USB, Ethernet	200 x 87 x 331mm	640W power class, LCD status display, 9 presets, SCPI support
PSI 5200-10 A	640W	0-200V	0-10A	90-264V AC	>0.99	Analog, USB, Ethernet	200 x 87 x 331mm	High-voltage model, USB/Ethernet control, OVP/OCP/OPP/OTP

30-Second Fit Check

Need a compact programmable DC power supply for a lab bench or automated test system? Models cover 0-40V, 0-80V and 0-200V.
Output power classes include 160W, 320W and 640W, with current ranges from 0-2A up to 0-40A.
Wide 90-264V AC input with active PFC supports global mains operation.
Integrated USB, Ethernet and galvanically isolated analog interface support remote control, data recording and test system integration.
Protection functions include OVP, OCP, OPP and OTP for safer operation with connected loads.

What It Is + Why It Matters

Microprocessor-controlled programmable desktop DC power supply for R&D, laboratory testing, electronic device validation and production inspection.
The flexible power-regulated output stage allows higher voltage at lower current or higher current at lower voltage, while staying within the rated output power.
Voltage, current and power can be adjusted continuously from 0-100%, whether controlled manually or remotely.
The blue LCD display shows set values, actual output values and device status clearly in one place.
Memory for 9 preset groups helps reduce setup time for repeated voltage, current, power and protection settings.

Note: For best model selection, confirm the required voltage range, current range, continuous power demand and preferred control method before ordering.

Key Electrical Specifications

AC input: 90-264V AC, 45-65Hz, with active Power Factor Correction.
Efficiency: up to 92%, depending on operating conditions.
Output voltage ranges: 0-40V, 0-80V or 0-200V, depending on model.
Output current ranges: 0-2A, 0-4A, 0-5A, 0-10A, 0-20A or 0-40A, depending on model.
Output power ratings: 0-160W, 0-320W or 0-640W.
Voltage load regulation: <0.08% from 0-100% load; voltage line regulation: <0.02%.
Current load regulation: <0.15% from 0-100% load; current line regulation: <0.02%.
Voltage and current accuracy: ≤0.2%; output power accuracy: ≤1%.

Remote Control & Interface Integration

Three-way interface: rear-panel analog interface plus USB and Ethernet digital interfaces.
Analog control: set voltage, current and power from 0-100% using 0-10V control signals.
Analog monitoring: output voltage and output current can be monitored with 0-10V analog signals.
USB interface: supports digital remote control without complex setup.
Ethernet interface: supports remote access and network parameter configuration.
SCPI command language: supported for automated test and laboratory control environments.
Software support: LabView VIs and Windows control software are available for PC-based operation.

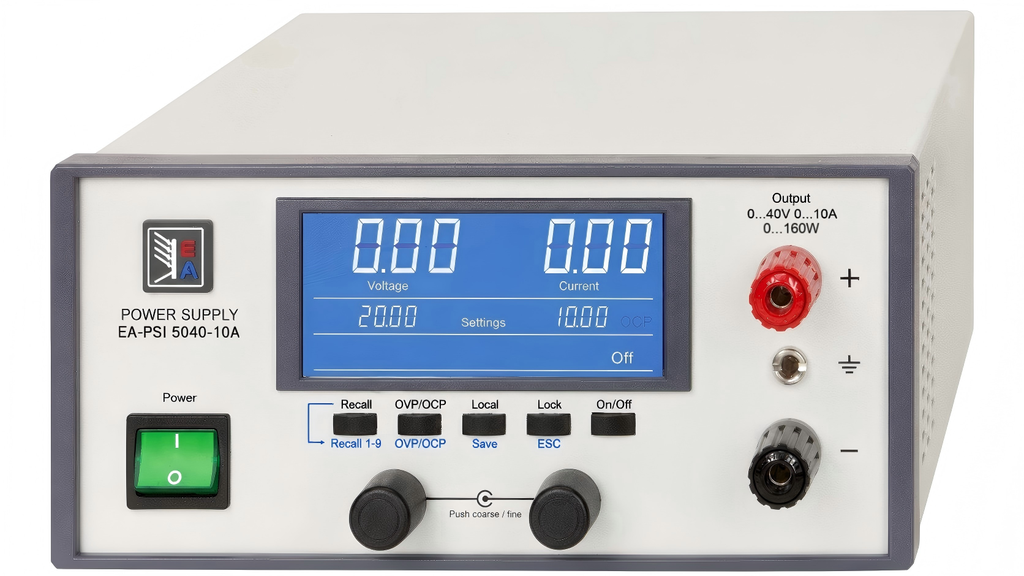

Display, Control & Preset Operation

Blue LCD display shows actual output voltage, actual output current, set values and status information.
Front panel includes two rotary knobs and pushbuttons for direct local operation.
Output values can be preset before activating the DC output, helping prevent unintended load energizing.
Recall function stores 9 different preset sets for voltage, current, power, OVP and OCP.
Control keys and knobs can be locked to help prevent unintended changes during active testing.

Protection & Supervision

OVP: adjustable overvoltage protection threshold for connected equipment protection.
OCP: adjustable overcurrent protection threshold for current-sensitive loads.
OPP: adjustable overpower protection to help keep operation within safe power limits.
OTP: overtemperature protection shuts down the DC output if overheating occurs.
Status signals can be shown on the display and generated through available interfaces for remote supervision.

Mechanical Design & Installation

Compact desktop enclosure for space-efficient use on laboratory benches and production test stations.
Front panel includes DC output terminals, LCD display, power switch, control keys and rotary knobs.
Rear panel includes AC power input, analog connector, USB interface, Ethernet port and additional output screw terminal.
160W models use convection cooling; 320W and 640W models use temperature-controlled fan cooling.
Dimensions are 200 x 87 x 301mm for 160W/320W models and 200 x 87 x 331mm for 640W models.
Weight is approximately 3kg for 160W/320W models and 4.3kg for 640W models.

Best-Fit Applications

Laboratory testing: adjustable DC output for electronic circuits, components and device validation.
R&D validation: programmable voltage, current and power for repeatable development workflows.
Automated test systems: USB, Ethernet, analog control and SCPI support for remote operation.
Production test benches: preset memory and protection thresholds help standardize routine power-on tests.
Education and training labs: clear LCD display and front-panel control support hands-on DC power experiments.

Model Selection Checklist

Selection Factor	Recommended Check	Why It Matters	Example Choice
Voltage Range	Choose 40V, 80V or 200V output range.	The voltage rating must cover the maximum required load voltage.	Use a 200V model for higher-voltage DC testing.
Current Range	Check required continuous and peak load current.	Current capacity determines whether the supply can support the intended operating point.	Use a 40A model for low-voltage, high-current applications.
Power Rating	Select 160W, 320W or 640W class.	Voltage and current combinations are limited by the model’s total rated output power.	Use a 640W model for higher continuous power demand.
Remote Control	Decide between analog, USB or Ethernet control.	Interface selection affects automation, data recording and integration into test systems.	Use Ethernet or USB for digital remote control; use analog for 0-10V control systems.
Protection Limits	Configure OVP, OCP and OPP before testing.	Protection thresholds help reduce risk to the power supply and connected load.	Set OVP slightly above the expected operating voltage for sensitive electronics.

Best for / Not for

Best for: Programmable DC bench testing, electronic device validation, R&D power supply tasks and automated test setups.
Best for: Applications requiring compact size, wide AC input, active PFC, analog control, USB control and Ethernet connectivity.
Not for: Applications requiring AC output or output power above 640W.
Not for: Loads requiring voltage, current or power combinations beyond the selected model rating.

RFQ Preparation Tips

Confirm the required output voltage range: 40V, 80V or 200V.
Confirm required output current and continuous power demand.
Specify whether analog, USB or Ethernet remote control is required.
Define protection requirements such as maximum allowed voltage, current and power.
Share load type, operating duty cycle and ambient temperature for more accurate model selection.

Need help choosing a configuration? Provide your target voltage, current, power level, load type and interface requirements to match the suitable model for your test or power supply application.
