Name: EA-PS 10360-30 2U
Brand: TPS ELECTRIC LLC
Rating: 5 (1 reviews)

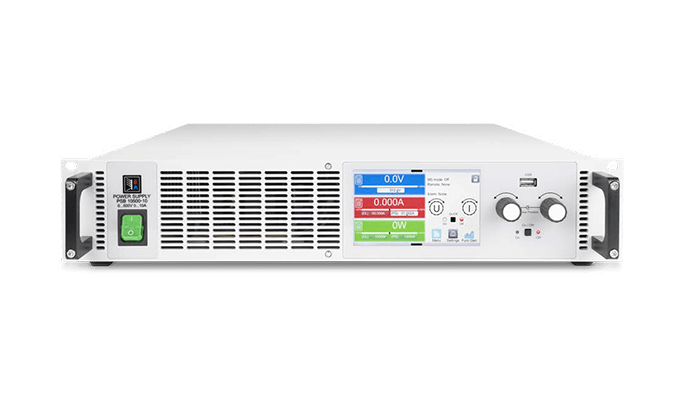

EA-PS 10360-30 2U

0-360V adjustable voltage, 0-30A current, and 3000W auto-ranging power in a compact 2U 19" rack chassis. Built-in internal resistance simulation, touchscreen HMI, analog & digital remote control, master-slave parallel up to 192kW, and full protections (OVP/OCP/OPP/OT). Ideal for battery testing, solar inverter MPPT, DC motor testing, and industrial automated test systems.

Output Current

0-30A

Output Power

3000W

Output Voltage

0-360V

Type

Characteristic Curve

U/I/P autoranging

External Control

Analogue 0-5V/0-10V, USB, LAN, Modbus TCP, Profibus, RS232, CAN

Housing

19" rack

Human Interface

Touch panel & Menu

Special Feature

Resistance

30-Second Fit Check

Output: 0-360V, 0-30A, 3000W with true autoranging (U/I/P).

AC input: 110-127V / 208-240V ±10% (single phase or two-phase), 45-65Hz. On 110V input, output derates to 1500W.

Efficiency: ≤94.5% at full load and full output voltage.

Regulation: Load regulation CV ≤0.05% FS, line regulation ≤0.01% FS.

Ripple: 30mV rms / 300mV pp (CV mode, 300 kHz / 20 MHz BW).

Protections: Adjustable OVP, OCP, OPP, plus OT, PF, and safety OVP on 60V models (not applicable).

What It Is + Why It Matters

High-power programmable DC power supply for battery testing, solar inverter MPPT, DC motor drives, industrial R&D, and ATE.

Autoranging output delivers full 3000W across wide voltage/current range – no manual range switching.

Built-in internal resistance simulation (0.4Ω – 800Ω adjustable) for battery and load emulation.

Master-Slave parallel operation – up to 64 units for 192kW total power; true current sharing via Share bus and digital MS bus.

High stability: temp coefficient CV ≤30ppm/°C after warm-up.

Note: Remote sensing compensates up to 5% of U_Nom. Always use DC terminal covers when hazardous voltages present.

Key Specs (EA-PS 10360-30 2U)

Voltage range: 0-360V (adjustable).

Current range: 0-30A (adjustable).

Power range: 3000W (autoranging).

Internal resistance simulation: 0.4Ω – 800Ω.

Rise/Fall time (CV): ≤20ms (10-90%).

Display accuracy: Voltage ≤0.05% FS, Current ≤0.1% FS.

Insulation: AC input to DC output 3750Vrms; DC minus to PE ±1000V, DC plus to PE +1000V.

Output capacitance: 660μF.

Interfaces & Remote Control

Standard digital: USB (rear B port) + Ethernet (100M) supporting SCPI and ModBus RTU; USB host (front) for data logging and profile loading.

Built-in analog interface (15-pin D-Sub): 0-5V / 0-10V selectable range for set/readback of U/I/P/R; includes remote on/off, alarm outputs (OT/OVP/OCP/OPP), and CV/CC status.

Optional plug-in modules (IF-AB series): Profibus, ProfiNet, CAN, CANopen, RS232, ModBus TCP, EtherCAT – installable without opening the device.

Web server on LAN port for network configuration and manual SCPI commands.

Remote sense for voltage drop compensation (max 5% of U_Nom).

Best for / Not for

Best for: Battery charging and cycling (Li-ion, lead-acid), solar inverter MPPT testing, DC motor and pump drives, power supply for industrial automation, capacitor charging, and general R&D lab use.

Not for: Applications requiring output above 360V or above 30A per single unit (use master-slave parallel to scale current); applications needing bidirectional energy recovery (consider PSB series).

Selection Checklist + Integration

Confirm AC supply: 208-240V recommended for full 3000W; on 110-127V derated to 1500W.

DC cable cross-section: For 30A / 5m length, use at least 10mm² (AWG8); for longer runs increase cross-section.

Mounting: 19" rack, 2U height, allow >30cm rear clearance for airflow.

For master-slave parallel: Connect Share bus (BNC) and MS bus (RJ45 CAT5); configure termination (BIAS/TERM) per manual.

For remote sense: Use included sense plugs to compensate voltage drop at load terminals.

For internal resistance mode: Activate R mode in the quick menu to simulate battery internal resistance.

Firmware: KE/HMI 3.02+ recommended for SEMI F47 support.
