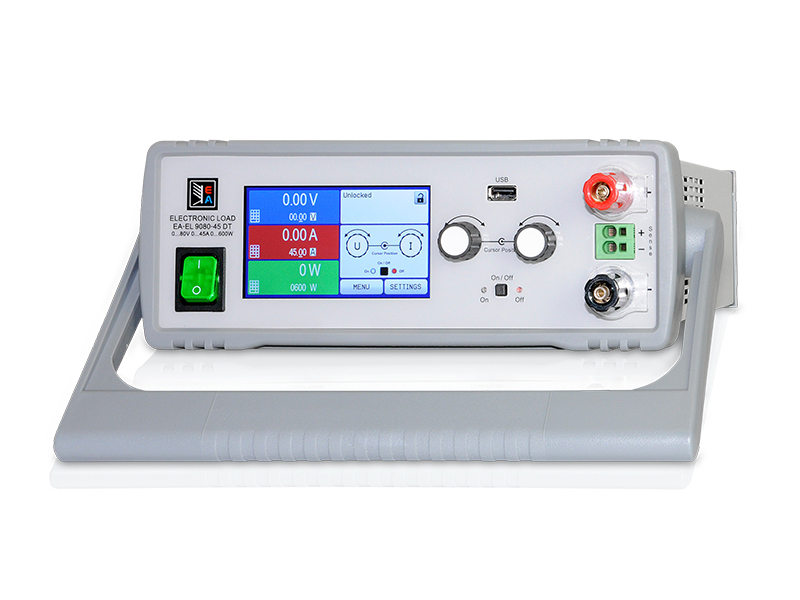

EA-EL 9080-45 DT 600W

600W programmable desktop DC electronic load with 0–80V, 0–45A input, CV/CC/CP/CR operating modes, and 4.3″ TFT touch panel. Built‑in function generator (sine, triangle, rectangle, trapezoid, arbitrary, ramp), battery test, and MPPT tracking. Remote control via galvanically isolated analog (0–5V/10V), USB, and Ethernet (ModBus/SCPI). Compact 276×103×355mm enclosure with optional 19″ rack‑mount kit. Ideal for R&D, laboratory testing, and production ATE.

Output Current
0-45A
Output Power
600W
Output Voltage
0-80V
Type
3U
External Control
Analogue 0-5V/0-10V, USB, LAN, Modbus
Housing
19" rack
Special Feature
Function Generator, Resistance
  • EA-EL 9080-45 DT 600W

Description

30-Second Fit Check

  • Need a precision DC load for power supply testing? Input is 0–80 V, rated 0–45 A.
  • Rated power: 600 W peak, 500 W steady (at 25°C).
  • Operates in CV, CC, CP, CR modes with automatic crossover.
  • AC supply: 90–264 VAC, 45–65 Hz; consumption max. 40 W, fuse T 2 A.
  • Protection set: OVP (0–82.4 V), OCP (0–49.5 A), OPP (0–660 W), OT, PF.
  • Dimensions: 276 × 103 × 355 mm; weight approx. 6.5 kg.

What It Is + Why It Matters

  • High‑precision programmable DC electronic load for R&D labs, production testing, and education.
  • CV/CC/CP/CR regulation with fast transient response (<23 µs rise) enables accurate dynamic load simulation.
  • Integrated function generator and arbitrary waveform generator (up to 99 sequences) eliminate external signal sources.
  • Battery discharge test (static/dynamic) with Ah, Wh, and time counters for complete battery characterization.
  • MPPT tracking (4 modes) simulates solar inverter behavior for photovoltaic panel testing.
  • Galvanically isolated analog interface plus USB and Ethernet (ModBus RTU/SCPI) for flexible ATE integration.
Note: Always configure OVP/OCP/OPP thresholds before connecting a voltage source. The device is not protected against external overvoltage when unpowered.

Key Specs

  • DC Input: 0–80 V max., max. allowed 88 V; min. voltage for full current ≈ 2.2 V.
  • Current: 0–45 A max., adjustable 0–45.9 A; accuracy ≤0.2% IMax.
  • Power: 600 W peak, 500 W steady; accuracy <0.5% PSteady.
  • Resistance: 0.09–30.6 Ω; accuracy ≤1% RMax + 0.3% IMax.
  • Voltage accuracy: ≤0.1% UMax; stability at ΔI <0.05% UMax.
  • Remote sensing: max. 5% UMax compensation; automatically detected when wired.
  • Display: 4.3″ colour TFT touch panel (capacitive, gorilla glass), 480×272 pt.
  • Interfaces: USB-B (rear, CDC), USB-A (front, data storage), Ethernet (10/100 MBit), 15‑pole Sub‑D analog (0–5V/0–10V).
  • Function generator: sine, triangle, rectangle, trapezoid, DIN 40839, arbitrary (99 sequences), ramp.
  • Special modes: battery test (static/dynamic), MPPT (4 modes), USB data logging.
  • Standards: EN 60950:2006 + amendments; EN 61000‑6‑3:2011, EN 61000‑6‑1:2007.

Integration & Installation

  • Desktop enclosure with carrying handle / tilt stand for ergonomic bench positioning.
  • Front panel: DC input terminals (clamp & plug, 4 mm/32 A max., spade lugs), USB‑A, remote sense, control panel.
  • Rear panel: AC inlet with fuse (T 2 A), USB‑B, Ethernet, 15‑pole Sub‑D analog interface.
  • Optional 19″ rack‑mount kit (2U height, order nr. 10 400 111) for cabinet integration.
  • Cooling: temperature‑controlled fans; leave ≥30 cm clearance behind the unit.
  • DC wiring: for 45 A, recommended cable cross section ≥10 mm² (AWG8) up to 5 m length.

Best for / Not for

  • Best for: R&D power supply testing, DC‑DC converter validation, battery discharge profiling, solar panel MPPT characterization, production ATE, and university laboratories.
  • Not for: sources exceeding 80 V / 45 A / 600 W; series connection of loads is not permitted.

Selection Checklist + RFQ

  • Confirm source voltage ≤ 80 V, current ≤ 45 A, sustained power ≤ 500 W (peak ≤600 W).
  • Select regulation mode (CV/CC/CP/CR) and set OVP/OCP/OPP thresholds to protect your source.
  • Choose remote interface: USB, Ethernet (ModBus/SCPI), or galvanically isolated analog (0–5V/10V).
  • If rack mounting, order the optional 2U mounting frame (10 400 111).
  • For battery or MPPT testing, ensure test parameters match the built‑in function capabilities.
  • Plan adequate ventilation: ≥30 cm free space behind the unit, unobstructed side air inlets.
